Description
Sherline 1/4 inch Brazed Carbide Tool Set 3006
1/4 inch Brazed Carbide Tool Set 3006
Carbide tools have a small piece of tough carbide brazed to the tip of a softer steel shank. These tools are recommended for cutting hard or abrasive materials on lathes and mills. Carbide tools can retain their hardness at temperatures up to approximately 1700°. This permits a higher cutting speed and faster feed rates.
They are typically harder to sharpen than their HSS counterparts. A silicon carbide or diamond grinding wheel must be used. The shape of carbide tools is also more critical than the shape of high-speed steel cutters, but their cutting ability on tough or abrasive materials makes them very popular. If you are cutting a material that quickly dulls your HSS cutters, you will find carbide tools might be just what you need.
This 3-piece set includes a right-hand tool (P/N 11920), a left-hand tool (P/N 11930), and a 60° threading tool (P/N 11940) for use with lathes and mills. For milling and machining.
NOTE: A tool is named by the direction from which the chip leaves the tool; so a right-hand tool has its cutting edge on the left and the chip peels off to the right.
Other tool sets available from Sherline:
P/N 3007, 1/4″ HSS 3-piece tool set (RH, LH, Boring tool)

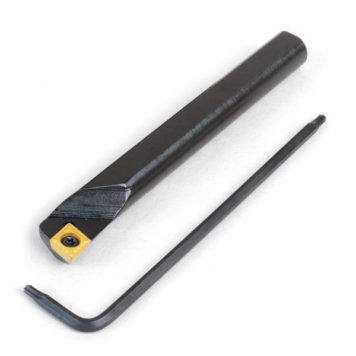

P/N 2258, 3/8″ Inserted Tip Carbide Tool Holders (RH, LH)
Specifications
- Size: 1/4″
- Tool Nr: AR4
- Grade: C5
- Cutting Direction: Right Hand, Left Hand
- Overall Length: 2″
- Style: AR
- Tool Material: Carbide Tipped
- Type: Carbide Tipped Tool Bit
Threading Tool: 60°
- Size: 1/4″
- Tool NR: E4
- Grade: C5
- Cutting Direction: Threading Tool 60° Included Angle
- Overall Length: 2″
- Included Angle: 60° Included Angle
- Style: E
- Tool Material: Carbide Tipped
- Type: Carbide Tipped Tool Bit
